Deep Groove, Single Row, Sealed Ball Bearing
$105.80

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications. Sealed units are protected from liquids, vapors, and fine dust, have excellent grease retention but have increased friction compared to shielded and open bearings. Operation above 180°F will significantly shorten the life of standard sealed bearings.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code101974
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6300
SealsSeals
Construction248F Seals
DutyStandard
Shaft Size65mm
Material52100

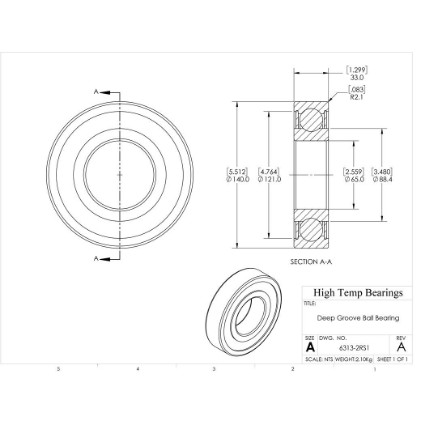

Dimensions

Attribute nameAttribute value
Bore (mm)65
D (mm)140
B (mm)33
r (mm)2.1
D2 (mm)121
d1 (mm)88.4

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)2
Da (mm)128
damin (mm)77

Calculation Data

Attribute nameAttribute value
Nmax (RPM)Limiting speed3200
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor13
C (lb)Dynamic load capacity21919
C0 (lb)Static load capacity13489
Pu (lb)Fatigue load limit562

Mass

Attribute nameAttribute value
Weight(lbs)4.63

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
