Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open

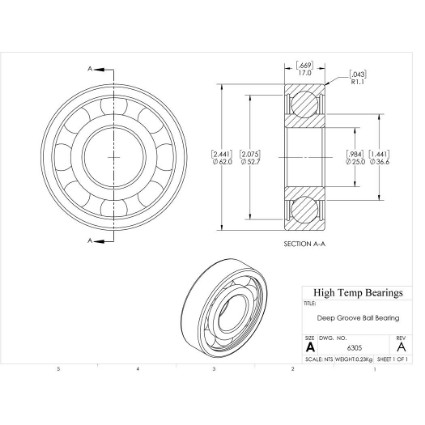

Picture of 25mm 6305 Deep Groove Open Ball Bearing
Deep Groove, Single Row, Open Ball Bearing
$12.10
This product has a minimum quantity of 2

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200167
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6300
Construction248F Open
DutyStandard
SealsNone
Shaft Size25mm
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)25
D (mm)62
B (mm)17
r (mm)1.1
D2 (mm)52.7
d1 (mm)36.6

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)55
damin (mm)32

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed24000
Nmax (RPM)Limiting speed16000
krMinimum radial load factor30
kaMinimum axial load factor0.5
foCalculation factor12
C (lb)Dynamic load capacity5261
C0 (lb)Static load capacity2608
Pu (lb)Fatigue load limit110

Mass

Attribute nameAttribute value
Weight(lbs)0.51

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
