Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of Deep Groove, Single Row, Open
Picture of 35mm 61807 Deep Groove Open Ball Bearing
Deep Groove, Single Row, Open Ball Bearing
$10.08
This product has a minimum quantity of 2

checkbox icon This item typically ship in 1-4 weeks.

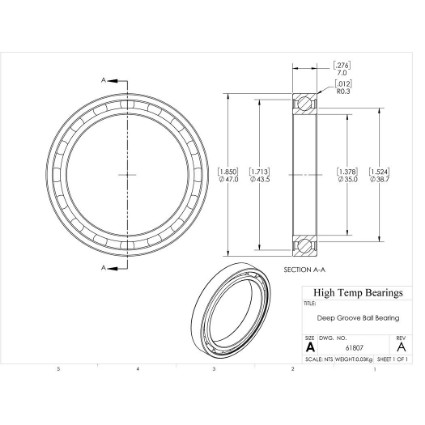

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code200529
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series61800
Construction248F Open
DutyStandard
SealsNone
Shaft Size35mm
Material52100

Dimensions

Attribute nameAttribute value
Bore (mm)35
D (mm)47
B (mm)7
r (mm)0.3
D2 (mm)43.5
d1 (mm)38.7

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)0.3
Da (mm)45
damin (mm)37

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed28000
Nmax (RPM)Limiting speed18000
krMinimum radial load factor15
kaMinimum axial load factor0.25
foCalculation factor14
C (lb)Dynamic load capacity1068
C0 (lb)Static load capacity719
Pu (lb)Fatigue load limit37

Mass

Attribute nameAttribute value
Weight(lbs)0.07

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
