Deep Groove, Single Row, Shielded Ball Bearing
$28.70

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications. Shielded units are not well protected from liquids, vapors, or fine dust. Operation above 180°F will significantly shorten the life of standard shielded bearings.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code101324
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Series6000
SealsShields
Construction248F Shields
DutyStandard
Shaft Size60mm
Material52100

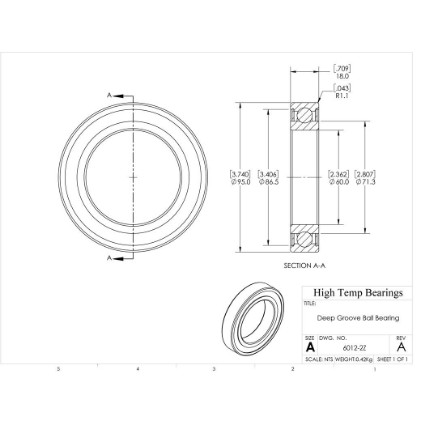

Dimensions

Attribute nameAttribute value
Bore (mm)60
D (mm)95
B (mm)18
r (mm)1.1
D2 (mm)86.5
d1 (mm)71.3

Abutment Dimensions

Attribute nameAttribute value
Ra (mm)1
Da (mm)89
damin (mm)66

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed15000
Nmax (RPM)Limiting speed7500
krMinimum radial load factor25
kaMinimum axial load factor0.25
foCalculation factor16
C (lb)Dynamic load capacity6902
C0 (lb)Static load capacity5216
Pu (lb)Fatigue load limit220

Mass

Attribute nameAttribute value
Weight(lbs)0.93

Tolerance Class

Attribute nameAttribute value
ClearanceC3

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
