40mm 6008 Deep Groove Shielded ZZ Ball Bearing|High Temp Bearings

Picture of Deep Groove, Single Row, Shielded

Deep Groove, Single Row, Shielded Ball Bearing

$14.46

This product has a minimum quantity of 2

Qty:

checkbox icon This item typically ship in 1-4 weeks.

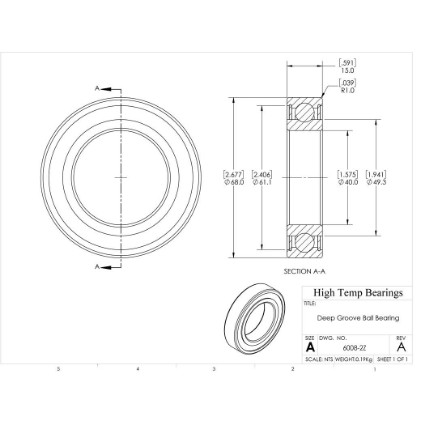

CAD

Specifications:

Description

Designed to handle a combination of radial and axial forces at a range of speeds, temperatures, and environments for an extended period with minimal friction for typical industrial applications. Shielded units are not well protected from liquids, vapors, or fine dust. Operation above 180°F will significantly shorten the life of standard shielded bearings.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		101277
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		6000
Seals		Shields
Construction		248F Shields
Duty		Standard
Shaft Size		40mm
Material		52100

Dimensions

Attribute name		Attribute value
Bore (mm)		40
D (mm)		68
B (mm)		15
r (mm)		1
D2 (mm)		61.1
d1 (mm)		49.3

Abutment Dimensions

Attribute name		Attribute value
Ra (mm)		1
Da (mm)		63.4
damin (mm)		44.6

Calculation Data

Attribute name		Attribute value
Nr (RPM)	Reference speed	22000
Nmax (RPM)	Limiting speed	11000
kr	Minimum radial load factor	25
ka	Minimum axial load factor	0.25
fo	Calculation factor	15
C (lb)	Dynamic load capacity	4002
C0 (lb)	Static load capacity	2608
Pu (lb)	Fatigue load limit	110

Mass

Attribute name		Attribute value
Weight(lbs)		0.42

Tolerance Class

Attribute name		Attribute value
Clearance		C3

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
