3-1/2" 750 °F Carbon 4 Bolt Flange Bearing|High Temp Bearings

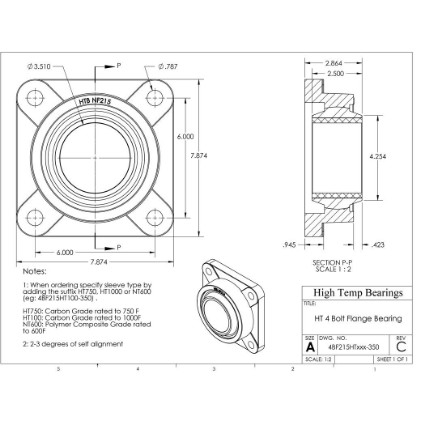

Picture of 4-Bolt Flange HT750 Carbon Sleeve Bearing

4-Bolt Flange 750 °F Solid Mounted Carbon Sleeve Bearing

$886.19

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Self-aligning, maintenance-free, carbon-graphite sleeve in a nickel-plated carbon steel backing ring, mounted in a cast iron housing. It uses our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces and our tight-grained graphite that resists seizure in outdoor intermittent service applications.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		300263
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Construction		4-Bolt Flange
Shaft Size		3-1/2"
Material		HT750

Dimensions

Attribute name		Attribute value
Bore (in)		3.51
ShaftDia (in)		3.5
A (in)		2.5
B (in)		7.874
C (in)		2.864
D (in)		6
F (in)		0.787
H (in)		0.945
J (in)		0.423
L (in)		4.254

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	17000
10 RPM (lb)	Load capacity at 10 RPM	9100
50 RPM (lb)	Load capacity at 50 RPM	4000
100 RPM (lb)	Load capacity at 100 RPM	2000
200 RPM (lb)	Load capacity at 200 RPM	1000
Max Cap Load (lb)		4151
Max Thrust Load (lb)		910

Mass

Attribute name		Attribute value
Weight(lbs)		18

Safe Loads

Attribute name		Attribute value
Tmax (F)		750
Tmin (F)		-40
Tservice (F)	Max use temperature in air	750

Associated Products

Attribute name		Attribute value
Bearing Insert		HR215-HT7-350
