Cup and cone tapered roller bearing: 4269042620

Cup and cone tapered roller bearing: 4269042620

Cup and cone tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

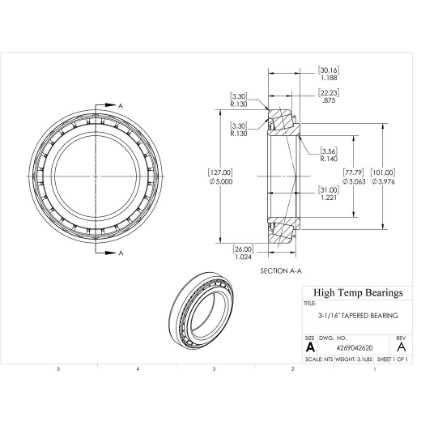

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size3-1/16"
D (mm)127
B (mm)30.1625
C (lb)38443
C0 (lb)45861
Pu (lb)5395
Nr (RPM)4000
Nmax (RPM)5000
d1 (mm)101
T (mm)31.0007
Weight(lbs)3.1
Code410179
Bore (mm)77.7875
Da (mm)88
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)22.225
Damin-db (mm)112
damax (mm)88
dbmin (mm)92
Dbmin (mm)92
r1-r2 (mm)3.556
r3-r4 (mm)3.302
a (mm)26
Camin (mm)5
Cbmin (mm)7.5
ramax (mm)3.5
rbmax (mm)3.3
e0.43
Y1.4
Y00.8
t (mm)31.0007
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
