Back to back matched tapered roller bearing: 33220T135DB

Back to back matched tapered roller bearing: 33220T135DB

Back to back matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

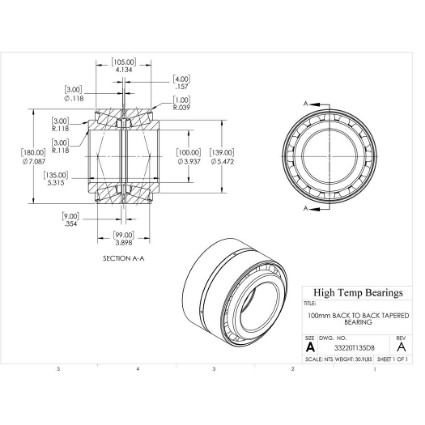

CAD
Specifications:
Attribute nameAttribute value
ConstructionBack to Back Matched Set
Shaft Size100mm
D (mm)180
B (mm)135
C (lb)205027
C0 (lb)296749
Pu (lb)31473
Nr (RPM)2400
Nmax (RPM)3600
d1 (mm)139
Weight(lbs)30.9
Code410220
Bore (mm)100
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)105
dbmin (mm)114
Dbmin (mm)114
r1-r2 (mm)3
a (mm)99
Cbmin (mm)15
ramax (mm)3
e0.4
Y01.6
K (mm)3
Y11.7
Y22.5
b (mm)4
r5 (mm)1
l (mm)9
rcmax (mm)1
PackageQTY1
UOMEA
Matched back-to-back tapered roller bearings are the most popular double row tapered bearing design. They carry heavy radial and axial loads and axial forces in both directions. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly.
