Cup and cone tapered roller bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410126
Shaft Size90mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

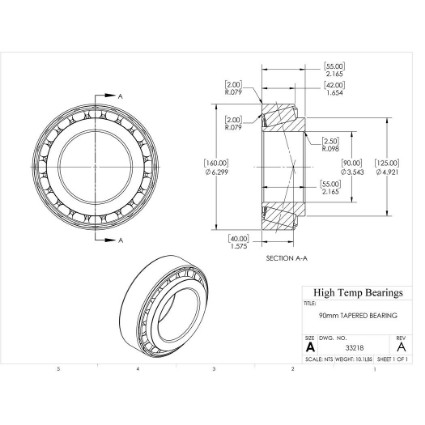

Dimensions

Attribute nameAttribute value
Bore (mm)90
D (mm)160
B (mm)55
d1 (mm)125
T (mm)55
P (mm)42
r1-r2 (mm)2.5
r3-r4 (mm)2
a (mm)40
t (mm)55

Abutment Dimensions

Attribute nameAttribute value
Da (mm)101
Damin-db (mm)135
damax (mm)101
dbmin (mm)102
Dbmin (mm)102
Camin (mm)8
Cbmin (mm)13
ramax (mm)2.5
rbmax (mm)2

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed3000
Nmax (RPM)Limiting speed4000
C (lb)Dynamic load capacity93296
C0 (lb)Static load capacity116901
Pu (lb)Fatigue load limit12814
eLimiting value0.43
YCalculation factor1.4
Y0Calculation factor0.8

Mass

Attribute nameAttribute value
Weight(lbs)10.1

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
