Cup and cone tapered roller bearing: 33209

Cup and cone tapered roller bearing: 33209

Cup and cone tapered roller bearing
$69.41
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

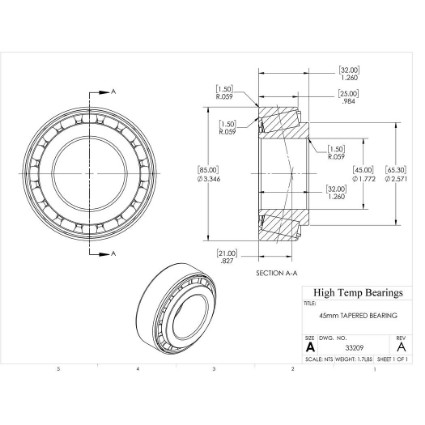

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size45mm
D (mm)85
B (mm)32
C (lb)29675
C0 (lb)32148
Pu (lb)3664
Nr (RPM)6000
Nmax (RPM)7500
d1 (mm)65.3
T (mm)32
Weight(lbs)1.7
Code410047
Bore (mm)45
Da (mm)52
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)25
Damin-db (mm)72
damax (mm)52
dbmin (mm)53.5
Dbmin (mm)53.5
r1-r2 (mm)1.5
r3-r4 (mm)1.5
a (mm)21
Camin (mm)5
Cbmin (mm)7
ramax (mm)1.5
rbmax (mm)1.5
e0.4
Y1.5
Y00.8
t (mm)32
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
