Large Face to Face Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

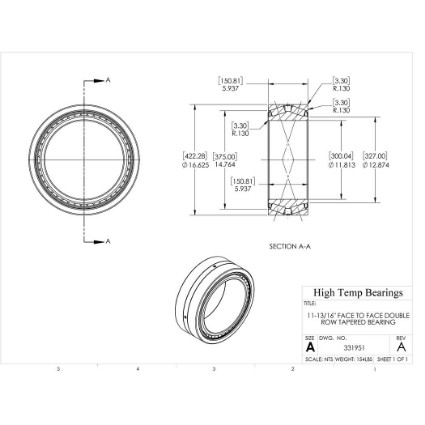

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Face to Face
Shaft Size11-13/16"
D (mm)422.275
B (mm)150.812
C (lb)489411
C0 (lb)1067848
Pu (lb)89924
d1 (mm)327
Weight(lbs)154
Code410253
Bore (mm)300.038
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)150812
r1-r2 (mm)3.3
r3-r4 (mm)3.3
e0.33
Y02
k1.73
Y12
Y23
t (mm)150812
D1 (mm)375
CF (lbs)121397
Cfa (lbs)39567
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. The face to face arrangement is more complicated to use correctly and is less popular than the back to back layout. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, provided the operating temperature and heat flow are stabilized. The bearing construction can be customized to meet specific technical requirements.
