Large Back to Back Double Row Tapered Bearing: 331197A

Large Back to Back Double Row Tapered Bearing: 331197A

Large Back to Back Double Row Tapered Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

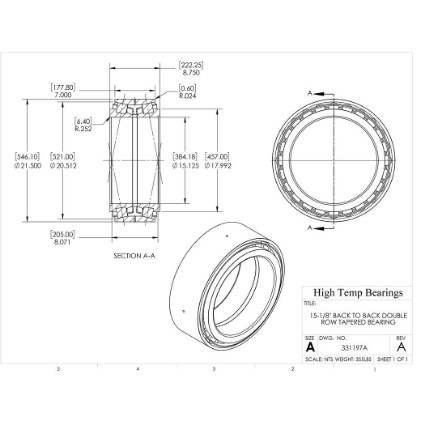

CAD
Specifications:
Attribute nameAttribute value
ConstructionDouble Row Back to Back
Shaft Size15-1/8"
D (mm)546.1
B (mm)222.25
C (lb)837192
C0 (lb)1865923
Pu (lb)143878
d1 (mm)457
Weight(lbs)355
Code410244
Bore (mm)384.175
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
P (mm)177.8
r1-r2 (mm)6.4
r3-r4 (mm)0.6
a (mm)205
e0.33
Y02
k1.76
Y12
Y23
D1 (mm)521
CF (lbs)205701
Cfa (lbs)67668
PackageQTY1
UOMEA
This configuration features huge bore sizes suited for metal manufacturing rolling mill stands, and mining machinery. They support massive radial and axial loads and resist axial forces in both directions. This design reduces installation complexity by having a single common inner race that ensures precise positioning across all rollers. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly. The bearing construction can be customized to meet specific technical requirements.
