Back to back matched tapered roller bearing: 32219T105DB

Back to back matched tapered roller bearing: 32219T105DB

Back to back matched tapered roller bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Matched back-to-back tapered roller bearings are the most popular double row tapered bearing design. They carry heavy radial and axial loads and axial forces in both directions. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. An essential feature of this configuration is that when the shaft thermally expands lengthwise, the axial preload forces decrease in the bearing. It will run at a lower temperature than a face-to-face bearing in the same situation. It is much easier to use in industrial settings where operating temperatures vary significantly.
Product Information
Attribute nameAttribute value
Code410216
Shaft Size95mm
SealsNone
ConstructionBack to Back Matched Set
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

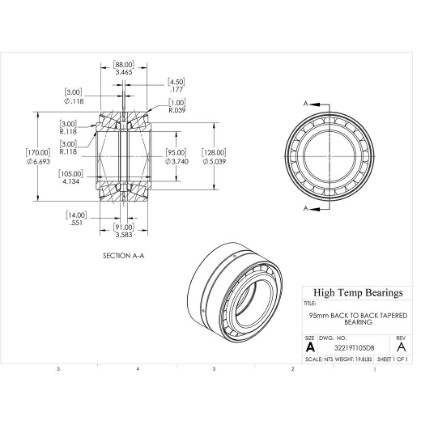

Dimensions
Attribute nameAttribute value
Bore (mm)95
D (mm)170
B (mm)105
d1 (mm)128
P (mm)88
r1-r2 (mm)3
a (mm)91
K (mm)3
b (mm)4.5
r5 (mm)1
l (mm)14
Abutment Dimensions
Attribute nameAttribute value
dbmin (mm)109
Dbmin (mm)109
Cbmin (mm)85
ramax (mm)3
rcmax (mm)1
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed2600
Nmax (RPM)Limiting speed3800
C (lb)Dynamic load capacity134212
C0 (lb)Static load capacity175352
Pu (lb)Fatigue load limit19446
eLimiting value0.43
Y0Calculation factor1.6
Y1Calculation factor1.6
Y2Calculation factor2.3
Mass
Attribute nameAttribute value
Weight(lbs)19.8
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
