Cup and cone tapered roller bearing: 32219

Cup and cone tapered roller bearing: 32219

Cup and cone tapered roller bearing
$329.45

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute nameAttribute value
Code410133
Shaft Size95mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

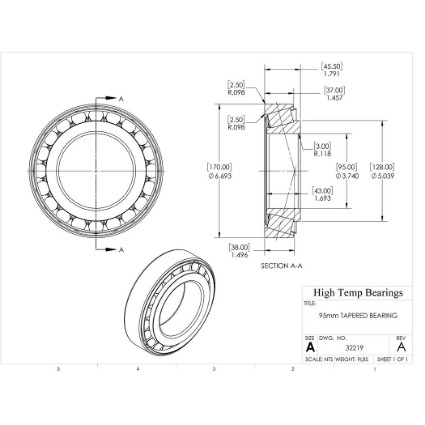

Dimensions
Attribute nameAttribute value
Bore (mm)95
D (mm)170
B (mm)45.5
d1 (mm)128
T (mm)43
P (mm)37
r1-r2 (mm)3
r3-r4 (mm)2.5
a (mm)38
t (mm)43
Abutment Dimensions
Attribute nameAttribute value
Da (mm)109
Damin-db (mm)145
damax (mm)109
dbmin (mm)108
Dbmin (mm)108
Camin (mm)5
Cbmin (mm)8.5
ramax (mm)3
rbmax (mm)2.5
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed3200
Nmax (RPM)Limiting speed3800
C (lb)Dynamic load capacity78234
C0 (lb)Static load capacity87676
Pu (lb)Fatigue load limit9667
eLimiting value0.43
YCalculation factor1.4
Y0Calculation factor0.8
Mass
Attribute nameAttribute value
Weight(lbs)9
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
