Cup and cone tapered roller bearing: 32209

Cup and cone tapered roller bearing: 32209

Cup and cone tapered roller bearing
$75.17
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

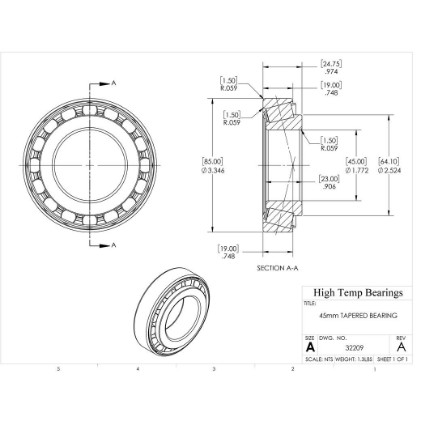

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size45mm
D (mm)85
B (mm)24.75
C (lb)22189
C0 (lb)22031
Pu (lb)2473
Nr (RPM)6300
Nmax (RPM)8000
d1 (mm)64.1
T (mm)23
Weight(lbs)1.3
Code410046
Bore (mm)45
Da (mm)54
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)19
Damin-db (mm)73
damax (mm)54
dbmin (mm)53.5
Dbmin (mm)53.5
r1-r2 (mm)1.5
r3-r4 (mm)1.5
a (mm)19
Camin (mm)3
Cbmin (mm)5.5
ramax (mm)1.5
rbmax (mm)1.5
e0.4
Y1.5
Y00.8
t (mm)23
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
