Large Four Row Cylindrical Roller Bearing: 320415

Large Four Row Cylindrical Roller Bearing: 320415

Large Four Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
This configuration features huge bore sizes for metals manufacturing rolling mill stands and mining machinery. Supports massive radial loads with a high maximum allowable rpm limit in a design that simplifies installation. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410625
Shaft Size240mm
SealsNone
ConstructionFour Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

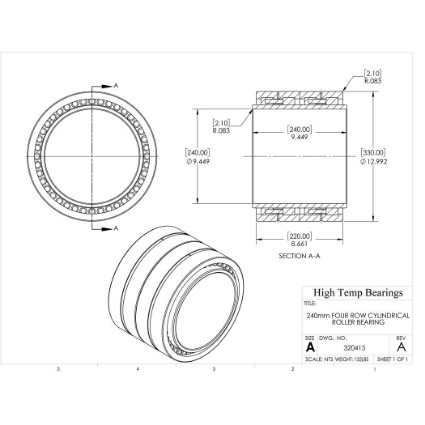

Dimensions
Attribute nameAttribute value
Bore (mm)240
D (mm)330
B (mm)240
P (mm)220
r1-r2 (mm)2.1
r3-r4 (mm)2.1
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity384200
C0 (lb)Static load capacity957691
Pu (lb)Fatigue load limit92397
Mass
Attribute nameAttribute value
Weight(lbs)132
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
