Large Four Row Cylindrical Roller Bearing: 319254

Large Four Row Cylindrical Roller Bearing: 319254

Large Four Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

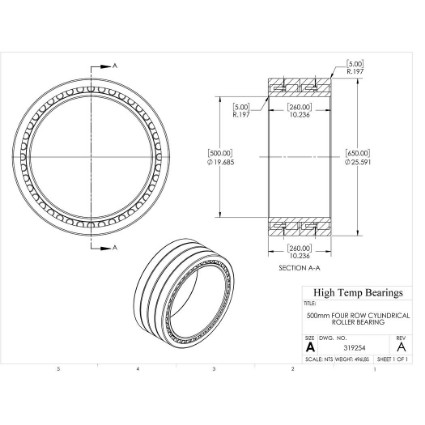

CAD
Specifications:
Attribute nameAttribute value
ConstructionFour Row
Shaft Size500mm
D (mm)650
B (mm)260
C (lb)913628
C0 (lb)2268333
Pu (lb)181197
Weight(lbs)496
Code410660
Bore (mm)500
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
P (mm)260
r1-r2 (mm)5
r3-r4 (mm)5
PackageQTY1
UOMEA
This configuration features huge bore sizes for metals manufacturing rolling mill stands and mining machinery. Supports massive radial loads with a high maximum allowable rpm limit in a design that simplifies installation. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
