Large Four Row Cylindrical Roller Bearing: 315189

Large Four Row Cylindrical Roller Bearing: 315189

Large Four Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

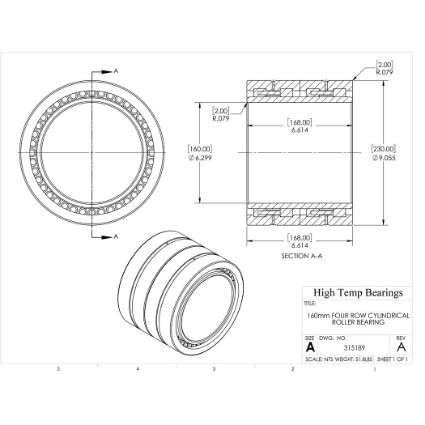

CAD
Specifications:
Attribute nameAttribute value
ConstructionFour Row
Shaft Size160mm
D (mm)230
B (mm)168
C (lb)247291
C0 (lb)490086
Pu (lb)53505
Weight(lbs)518
Code410602
Bore (mm)160
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
P (mm)168
r1-r2 (mm)2
r3-r4 (mm)2
PackageQTY1
UOMEA
This configuration features huge bore sizes for metals manufacturing rolling mill stands and mining machinery. Supports massive radial loads with a high maximum allowable rpm limit in a design that simplifies installation. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
