Cup and cone tapered roller bearing: 31320X

Cup and cone tapered roller bearing: 31320X

Cup and cone tapered roller bearing
$1,542.19
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

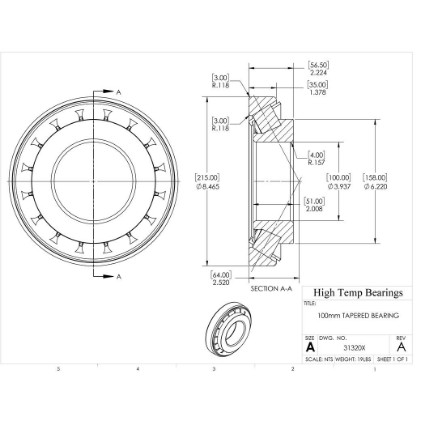

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410145
Shaft Size100mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)100
D (mm)215
B (mm)56.5
d1 (mm)158
T (mm)51
P (mm)35
r1-r2 (mm)4
r3-r4 (mm)3
a (mm)64
t (mm)51
Abutment Dimensions
Attribute nameAttribute value
Da (mm)121
Damin-db (mm)168
damax (mm)121
dbmin (mm)116
Dbmin (mm)116
Camin (mm)7
Cbmin (mm)21.5
ramax (mm)4
rbmax (mm)3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed2200
Nmax (RPM)Limiting speed3000
C (lb)Dynamic load capacity89699
C0 (lb)Static load capacity104537
Pu (lb)Fatigue load limit11465
eLimiting value0.83
YCalculation factor0.72
Y0Calculation factor0.4
Mass
Attribute nameAttribute value
Weight(lbs)19
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
