Cup and cone tapered roller bearing: 31317

Cup and cone tapered roller bearing: 31317

Cup and cone tapered roller bearing
$641.05
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

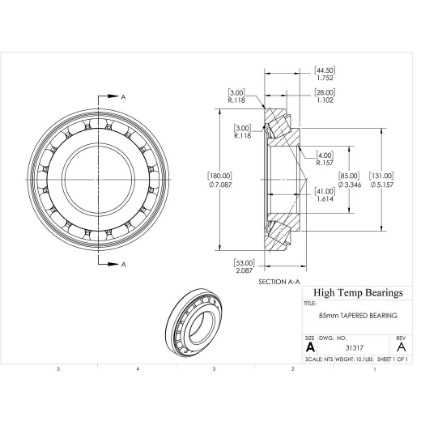

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size85mm
D (mm)180
B (mm)44.5
C (lb)66769
C0 (lb)64071
Pu (lb)7194
Nr (RPM)2800
Nmax (RPM)3800
d1 (mm)131
T (mm)41
Weight(lbs)10.1
Code410118
Bore (mm)85
Da (mm)104
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)28
Damin-db (mm)143
damax (mm)104
dbmin (mm)100
Dbmin (mm)100
r1-r2 (mm)4
r3-r4 (mm)3
a (mm)53
Camin (mm)5
Cbmin (mm)16.5
ramax (mm)4
rbmax (mm)3
e0.83
Y0.72
Y00.4
t (mm)41
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
