Face to face matched tapered roller bearing: 31305DF

Face to face matched tapered roller bearing: 31305DF

Face to face matched tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

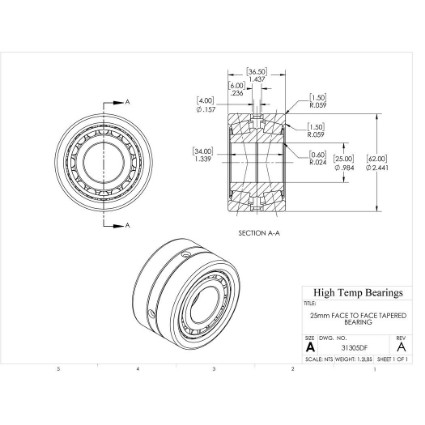

CAD
Specifications:
Attribute nameAttribute value
ConstructionFace to Face Matched Set
Shaft Size25mm
D (mm)62
B (mm)36.5
C (lb)17962
C0 (lb)17985
Pu (lb)1945
Nr (RPM)6700
Nmax (RPM)11000
Weight(lbs)1.2
Code410180
Bore (mm)25
Da (mm)34
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
Damin-db (mm)47
damax (mm)34
r3-r4 (mm)1.5
Camin (mm)3
ramax (mm)1.5
e0.83
Y00.8
K (mm)4
Y10.81
Y21.2
2B (mm)34
b (mm)6
r5 (mm)0.6
PackageQTY1
UOMEA
Matched face to face tapered roller bearings handle axial force in both directions and large radial loads while maintaining accurate centering. They are manufactured together as a set that includes two tapered roller bearings, and a precision machined set of shims. This configuration is more complicated to use correctly and is less popular than the back to back arrangement. Its main advantage is that the axial clearance in the bearing will decrease as it heats. It is more prone to overheating without control of heat flow. Still, it is an excellent choice in equipment that requires tight positioning control, such as machining tools with forced cooling systems.
