Cup and cone tapered roller bearing: 31305

Cup and cone tapered roller bearing: 31305

Cup and cone tapered roller bearing
$49.11
EA

checkbox icon This item typically ship in 1-4 weeks.

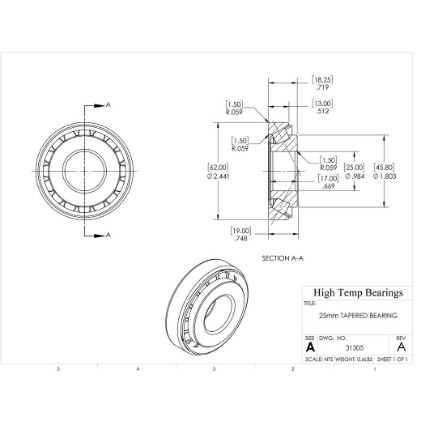

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code410014
Shaft Size25mm
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
Dimensions
Attribute nameAttribute value
Bore (mm)25
D (mm)62
B (mm)18.25
d1 (mm)45.8
T (mm)17
P (mm)13
r1-r2 (mm)1.5
r3-r4 (mm)1.5
a (mm)19
t (mm)17
Abutment Dimensions
Attribute nameAttribute value
Da (mm)34
Damin-db (mm)47
damax (mm)34
dbmin (mm)33
Dbmin (mm)33
Camin (mm)3
Cbmin (mm)5
ramax (mm)1.5
rbmax (mm)1.5
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed8500
Nmax (RPM)Limiting speed11000
C (lb)Dynamic load capacity10476
C0 (lb)Static load capacity8992
Pu (lb)Fatigue load limit989
eLimiting value0.83
YCalculation factor0.72
Y0Calculation factor0.4
Mass
Attribute nameAttribute value
Weight(lbs)0.6
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
