Cup and cone tapered roller bearing: 30220

Cup and cone tapered roller bearing: 30220

Cup and cone tapered roller bearing
$350.01
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

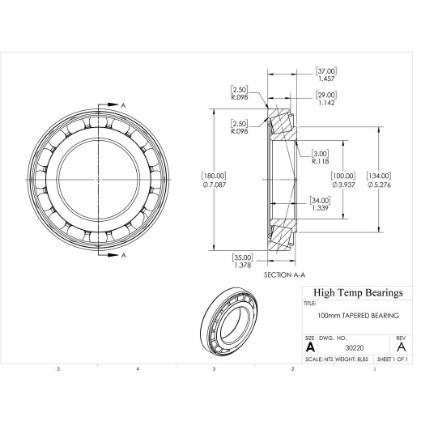

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size100mm
D (mm)180
B (mm)37
C (lb)68342
C0 (lb)71939
Pu (lb)8093
Nr (RPM)3000
Nmax (RPM)3600
d1 (mm)134
T (mm)34
Weight(lbs)8
Code410141
Bore (mm)100
Da (mm)116
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)29
Damin-db (mm)157
damax (mm)116
dbmin (mm)113
Dbmin (mm)113
r1-r2 (mm)3
r3-r4 (mm)2.5
a (mm)35
Camin (mm)5
Cbmin (mm)8
ramax (mm)3
rbmax (mm)2.5
e0.43
Y1.4
Y00.8
t (mm)34
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
