Cup and cone tapered roller bearing: 30207

Cup and cone tapered roller bearing: 30207

Cup and cone tapered roller bearing
$36.12
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

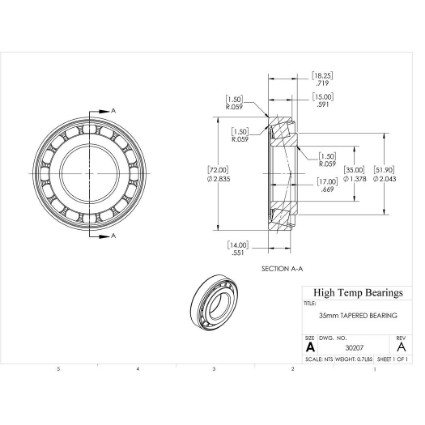

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size35mm
D (mm)72
B (mm)18.25
C (lb)14208
C0 (lb)12589
Pu (lb)1371
Nr (RPM)8000
Nmax (RPM)9500
d1 (mm)51.9
T (mm)17
Weight(lbs)0.7
Code410029
Bore (mm)35
Da (mm)44
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)15
Damin-db (mm)62
damax (mm)44
dbmin (mm)43.5
Dbmin (mm)43.5
r1-r2 (mm)1.5
r3-r4 (mm)1.5
a (mm)14
Camin (mm)3
Cbmin (mm)3
ramax (mm)1.5
rbmax (mm)1.5
e0.37
Y1.6
Y00.9
t (mm)17
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
