Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23040CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23040CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$2,894.61

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING
Product Information
Attribute nameAttribute value
Code410704
Shaft Size200mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

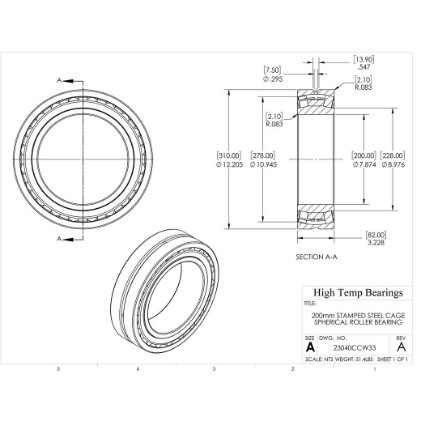

Dimensions
Attribute nameAttribute value
Bore (mm)200
D (mm)310
B (mm)82
r1-r2 (mm)2.1
K (mm)7.5
b (mm)13.9
B1 (mm)228
B2 (mm)278
Abutment Dimensions
Attribute nameAttribute value
Da (mm)299
Damin-db (mm)211
ramax (mm)2
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed1800
Nmax (RPM)Limiting speed2200
C (lb)Dynamic load capacity224809
C0 (lb)Static load capacity343958
Pu (lb)Fatigue load limit224809
eLimiting value0.24
Y0Calculation factor2.8
Y1Calculation factor2.8
Y2Calculation factor4.2
Mass
Attribute nameAttribute value
Weight(lbs)51.4
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
