Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23036CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 23036CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$2,171.92
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

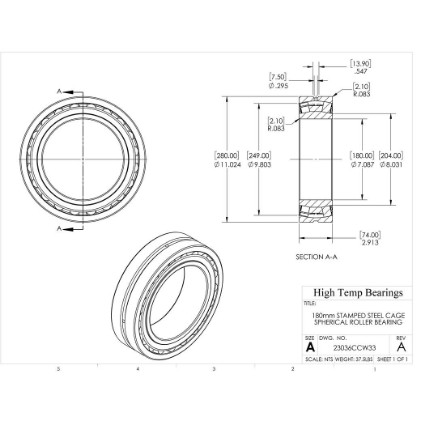

CAD
Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size180mm
D (mm)280
B (mm)74
C (lb)186591
C0 (lb)281011
Pu (lb)186591
Nr (RPM)2000
Nmax (RPM)2600
Weight(lbs)37.5
Code410702
Bore (mm)180
Da (mm)269
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)191
r1-r2 (mm)2.1
ramax (mm)2
e0.24
Y02.8
K (mm)7.5
Y12.8
Y24.2
b (mm)13.9
B1 (mm)204
B2 (mm)249
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
