Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22234CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22234CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$2,484.47
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

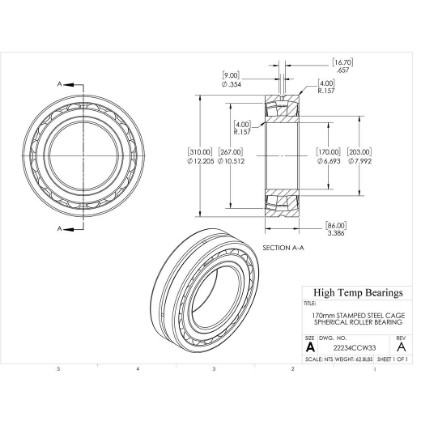

CAD
Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size170mm
D (mm)310
B (mm)86
C (lb)251787
C0 (lb)328223
Pu (lb)29675
Nr (RPM)1900
Nmax (RPM)2600
Weight(lbs)62.8
Code410691
Bore (mm)170
Da (mm)293
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)187
r1-r2 (mm)4
ramax (mm)3
e0.27
Y02.5
K (mm)9
Y12.5
Y23.7
b (mm)16.7
B1 (mm)203
B2 (mm)267
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
