Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22228CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22228CCW33

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$1,509.84
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

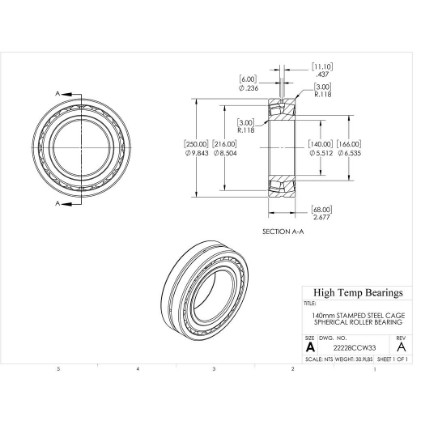

CAD
Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size140mm
D (mm)250
B (mm)68
C (lb)159615
C0 (lb)202329
Pu (lb)19446
Nr (RPM)2400
Nmax (RPM)3200
Weight(lbs)30.9
Code410688
Bore (mm)140
Da (mm)236
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)154
r1-r2 (mm)3
ramax (mm)2.5
e0.26
Y02.5
K (mm)6
Y12.6
Y23.9
b (mm)11.1
B1 (mm)166
B2 (mm)216
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
