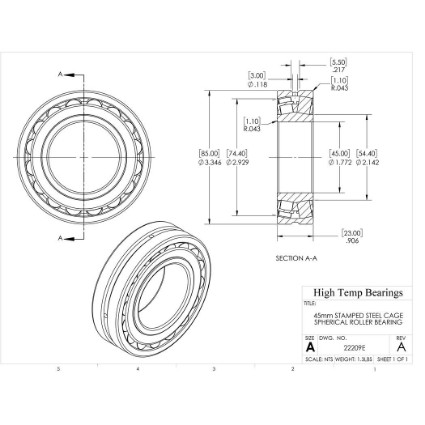

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22209E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing: 22209E

Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$200.45
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:
Attribute nameAttribute value
ConstructionCylindrical Bore Stamped Steel Cage
Shaft Size45mm
D (mm)85
B (mm)23
C (lb)22931
C0 (lb)22031
Pu (lb)2428
Nr (RPM)7500
Nmax (RPM)10000
Weight(lbs)1.3
Code410673
Bore (mm)45
Da (mm)78
SealsNone
ClearanceCN
Tmax (F)390
Tmin (F)-40
Material52100
Damin-db (mm)52
r1-r2 (mm)1.1
ramax (mm)1
e0.26
Y02.5
K (mm)3
Y12.6
Y23.9
b (mm)5.5
B1 (mm)54.4
B2 (mm)74.4
PackageQTY1
UOMEA
Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.
