Stamped Steel Cage Double Row Cylindrical Bore Spherical Roller Bearing
$144.29

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Supports heavy radial and axial loads for applications that require dynamic self-alignment during operation. The bearing steel is heat stabilized for high temperature operation when adequately lubricated. CC and E series bearings have a stamped steel cage and a center floating guide ring between the roller rows. The center floating ring assist provides roller tracking and stabilizes the bearing when accepting axial loads. This variation is good for more dynamically stable applications to reduce roller friction when extra guiding is not necessary.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410670
Shaft Size30mm
SealsNone
ConstructionCylindrical Bore Stamped Steel Cage
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

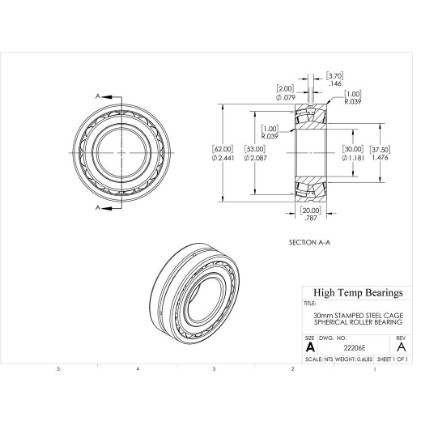

Dimensions

Attribute nameAttribute value
Bore (mm)30
D (mm)62
B (mm)20
r1-r2 (mm)1
K (mm)2
b (mm)3.7
B1 (mm)37.5
B2 (mm)53

Abutment Dimensions

Attribute nameAttribute value
Da (mm)56.4
Damin-db (mm)35.6
ramax (mm)1

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed10000
Nmax (RPM)Limiting speed14000
C (lb)Dynamic load capacity14388
C0 (lb)Static load capacity13489
Pu (lb)Fatigue load limit1439
eLimiting value0.31
Y0Calculation factor2.2
Y1Calculation factor2.2
Y2Calculation factor3.3

Mass

Attribute nameAttribute value
Weight(lbs)0.6

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)390
Tmin (F)-40
