Cup and cone tapered roller bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

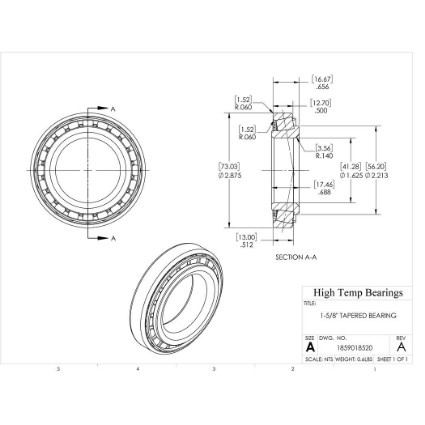

CAD
Specifications:
Attribute nameAttribute value
ConstructionSingle Row
Shaft Size1-5/8"
D (mm)73.025
B (mm)16.66748
C (lb)12972
C0 (lb)12589
Pu (lb)1394
Nr (RPM)7500
Nmax (RPM)9000
d1 (mm)56.2
T (mm)17.4625
Weight(lbs)0.6
Code410160
Bore (mm)41.275
Da (mm)50
SealsNone
ClearanceCN
Tmax (F)250
Tmin (F)-40
Material52100
P (mm)12.7
Damin-db (mm)66
damax (mm)50
dbmin (mm)54
Dbmin (mm)54
r1-r2 (mm)3.556
r3-r4 (mm)1.524
a (mm)13
Camin (mm)3
Cbmin (mm)3.5
ramax (mm)3.5
rbmax (mm)1.5
e0.35
Y1.7
Y00.9
t (mm)17.4625
PackageQTY1
UOMEA
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
